F80 M3 / F82 M4 Brake Caliper/Rotor Retrofit Guide to E9x M3 - Using OEM Parts

BIMMERPOST
     Featured on BIMMERPOST.com
Since the original thread is too long, I figured it would be useful to combine all of the info in one place that is easier to follow:

I've been getting a lot of questions about my F8x M4/M3 brake upgrade, so I thought I'd give an overview on how it is done and what parts are required. This is not meant to be a step by step DIY but a guide on how it's done since it's really pretty simple with the right parts.

They can also be done using F8x CCB setup or M2 Comp parts as well.


Part list:
  • F8x Calipers and Rotors/Pads
  • F8x Spindles
    Right: 31212284002
    Left: 31212284001
  • 4x M12 Flat washers, ideally around 2mm thickness.
  • F8x dust shields or you can cut trim the e9x ones.
    (also not a bad time to do brake ducting with a custom backing plate if you wanted to go that route)
  • Wheel bearing bolts (one time use)
    31206783065 - M12X1.5X45 - (x8 - 4 per wheel bearing)
    These bolts are required because the f8x carrier has a ball seat vs e9x which is flat
    These are not the ones from an f8x since the f8x wheel bearings are a different thread pitch, I ordered these ones new from FCP Euro.
  • New Brake lines are recommended, I went with E9x M3 Stainless steel lines from FCP Euro


Finally, you need to decide how to handle the ABS sensors. Since the F8x sensor location is slightly different requiring you to change the orientation of the E9x ones to read correctly.
Some have cut the e9x ones and created a holder out of metal.
Using the abs live obd2 reader, I was able to get the sensor to read correctly in this position (cut portion facing towards the outside center of the hub)
Eventually I bought 2 F8x sensors and spliced them into the E9x connectors and they worked perfectly and I was happier with that solution but both will work.



Full Install notes are on my blog with more pictures, not meant to be step by step but will give you a guide, it's fairly straight forward but I do include a few tips.

https://www.tdott.me/2020/04/project...on-e92-m3.html

Last edited by tdott; 04-23-2020 at 09:50 PM..
Appreciate 15
      04-22-2020, 01:31 PM   #2
tdott
Colonel
1241
Rep
2,385
Posts

Drives: M3
Join Date: Nov 2010
Location: South FL / 6ix

iTrader: (3)

Mod, please move to Suspension | Brakes | Chassis section.
Appreciate 0
      04-22-2020, 02:53 PM   #3
6ixSpd
Save the manuals!
6ixSpd's Avatar
Canada
5042
Rep
6,218
Posts

Drives: '12 M3, '11 335xi
Join Date: Feb 2016
Location: 416

iTrader: (4)

Awesome post! Easy to follow and answers all the questions. Thanks for sharing dude
__________________
'12 M3 6MT Alpine White + Fox Red Extended | '11 335xi Space Grey + Black

Appreciate 0
      04-23-2020, 09:40 PM   #4
RC Post
Private
51
Rep
96
Posts

Drives: E90 M3 6MT
Join Date: Feb 2013
Location: Lng Bch Cali

iTrader: (0)

Nice guide! Super clear.

How are they as far as performance? Same? Improved? Obviously looks way better than e9x calipers. I hate how ugly our caliper are..
Appreciate 0
      04-23-2020, 09:48 PM   #5
tdott
Colonel
1241
Rep
2,385
Posts

Drives: M3
Join Date: Nov 2010
Location: South FL / 6ix

iTrader: (3)

Quote:
Originally Posted by RC Post View Post
Nice guide! Super clear.

How are they as far as performance? Same? Improved? Obviously looks way better than e9x calipers. I hate how ugly our caliper are..
Long term driving impressions are good, high speed braking feeds much more stable. You probably won't notice much change driving around at normal speeds, the pedal is slightly firmer but that could be mostly the SS lines. I got to do 1 track day before things shut down and it went well, no fade, no issue and the blue didn't fade.

Plus the rotor size, rotor hats with M stamp, and calipers all look better so that's a good improvement.

Last edited by tdott; 04-24-2020 at 07:45 AM..
Appreciate 0
      04-24-2020, 07:48 AM   #6
Johnr3524
Private
26
Rep
84
Posts

Drives: 2018 X5
Join Date: Aug 2018
Location: Buffalo, NY

iTrader: (0)

This is great, nicely done. Would you please an estimated cost of the project versus alternatives?
Appreciate 0
      04-24-2020, 08:22 AM   #7
tdott
Colonel
1241
Rep
2,385
Posts

Drives: M3
Join Date: Nov 2010
Location: South FL / 6ix

iTrader: (3)

Quote:
Originally Posted by Johnr3524 View Post
This is great, nicely done. Would you please an estimated cost of the project versus alternatives?
Prices vary widely, so what I paid may not apply to everyone, my total cost was less than $1500 but that is because I was able to find a low mileage set of brakes from a friend who upgraded to a BBK and sold them to me for way below market in exchange for doing some work on his car. Then I found a set of new spindles a race team didn't use and was selling, so I bought those for less than cost of new. I'd say a more average price would be around 2k for used parts.

You can try to source used spindles, but again costs vary widely. So you are better off pricing things out yourself.

IMO, you couldn't buy a used front only bbk for the price I got this done at.
Appreciate 0
      04-24-2020, 08:51 AM   #8
SYT_Shadow
///M Powered for Life
SYT_Shadow's Avatar
United_States
4825
Rep
6,520
Posts

Drives: E90M/E92M/F80CS/X5 35/MiniCS
Join Date: Sep 2010
Location: Greenwich, CT

iTrader: (1)

super cool tdott!!
Appreciate 1
tdott1241.00

      04-25-2020, 11:30 AM   #9
M3_Legend
Private First Class
M3_Legend's Avatar
75
Rep
181
Posts

Drives: BMW E90
Join Date: Oct 2014
Location: Tri state

iTrader: (2)

This is great!!!!! One of my future plans now for my ///M.
__________________
2009 E90 M3 DCT Space Grey current
2005 E53 X5 3.0 Alpine white current
2008 E90 M3 6-speed Jerez Black Sold
2008 E90 335I 6 Speed Black Sapphire M-sport sold
2006 E53 X5 Black Sapphire sold
Appreciate 0
      04-25-2020, 02:29 PM   #10
Viper4
New Member
Viper4's Avatar
17
Rep
22
Posts

Drives: 11.5 E90 M3
Join Date: Jan 2015
Location: Rheinland

iTrader: (0)

This is great! I just picked up the F80 brakes. Now it's time to find some spindles! Anyone have a lead on those?

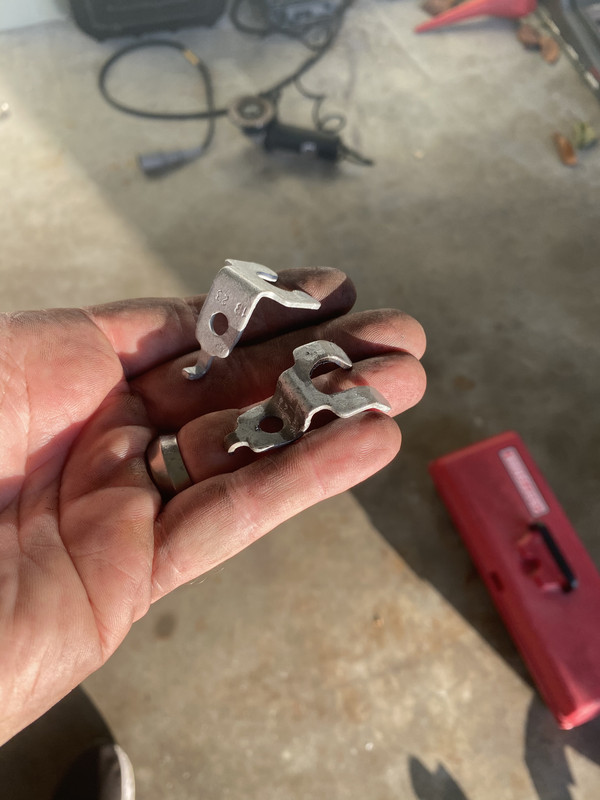

Attached Images
