Official S65 Rod Bearing Condition Example Thread

Hivand_M · 12-12-2021, 03:49 PM

2011 DCT - 34k miles.

I'm not sure what month.

-

jvictormp · 12-19-2021, 09:45 AM

40k km ~ 25k mls 2011 e90 m3

sorry for shitty lighting, and I may have made some confusion about upper and lower

Assimilator1 · 12-22-2021, 02:31 PM

jvictormp

Fancy doing a little experiment on a couple of your worst old worn shells?

Helmsman · 12-22-2021, 02:41 PM

Quote:

Originally Posted by Assimilator1

jvictormp

Fancy doing a little experiment on a couple of your worst old worn shells?

What happened to the one I and others sent so far mate? Report please!

Assimilator1 · 12-22-2021, 02:48 PM

Your the only one who actually made the effort to do something!

A few people replied, but they didn't follow it up.
And as you know I posted pics of your one, thanks again for shipping it over

.

I did wonder about starting a thread asking people to rub a shell down, but tbh I forgot about it, and I'm not sure I'll get much of a response anyway. Compared to somethings though, it's easy data to get!

jvictormp IIRC the experiment (rubbing down a portion of the shell), will take about 5 mins each, if doing it by hand.

jvictormp · 12-22-2021, 08:39 PM

Quote:

Originally Posted by Assimilator1

jvictormp IIRC the experiment (rubbing down a portion of the shell), will take about 5 mins each, if doing it by hand.

Let's do it!

Assimilator1 · 12-23-2021, 11:04 AM

Quote:

Originally Posted by jvictormp

Let's do it!

Excellent! Thanks

LMK here when you ready to do it

That goes for anyone else too who has any old LCI shells kicking around!

Dpc2u · 12-28-2021, 12:47 PM

Not my S65, my S85 I am working on. Same bearings, just 2 extra cylinders. Numbers 6 and 8 pretty bad, but no crank damage. 🔧💣

Assimilator1 · 12-29-2021, 08:41 PM

Yea! Yikes!

SSR Performance · 01-04-2022, 04:25 PM

Just replaced a few more bearings with ACL's!

info@SSR-Performance.com or (800) 438-2808

Orange County, CA

Some more examples for you guys to checkout:

12/27/21

12/27/21

12/29/21

Assimilator1 · 01-06-2022, 12:55 PM

Interesting to see high mileage Alu/Sn bearings.

munstro · 01-06-2022, 06:37 PM

High mileage shells

nofomo · 01-08-2022, 06:17 PM

95,072 miles off my 2011 E90 M3 ZCP.

Always warmed up, never tracked. Replaced with BE + ARP Bolts at SV Bimmer in San Jose, CA.

Assimilator1 · 01-08-2022, 07:53 PM

Quote:

Originally Posted by nofomo

95,072 miles off my 2011 E90 M3 ZCP.

Always warmed up, never tracked. Replaced with BE + ARP Bolts at SV Bimmer in San Jose, CA.

Fancy carrying out a little experiment on a couple of your old shells?

nolaman1970 · 01-19-2022, 10:14 AM

Changed on Monday. 2011 60k miles.

nicke_1 · 01-22-2022, 08:31 PM

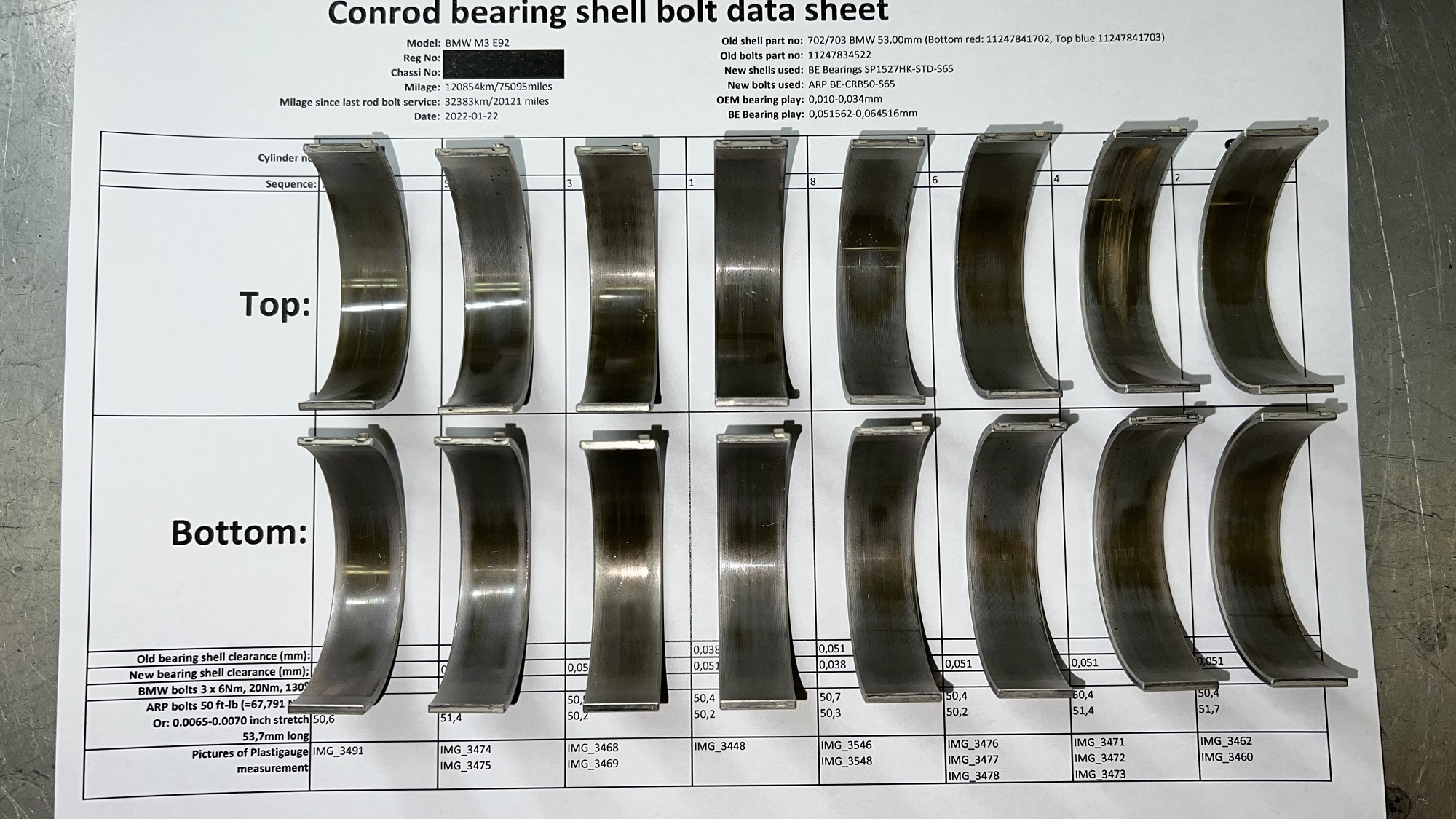

M3 E92 LCI with production date May 2010. 120854 km/75095 miles. The RB’s were replaced five years ago at 88471 km/54973 miles with 702/703 bearings and BMW bolts. I am now replacing them with BE and BE-ARP bolts. Old RB’s has only got 32383 km/20121 miles on them.
Name: IMG_3585_2.jpg
Views: 893
Size: 727.4 KB

Name: IMG_3585_2.jpg
Views: 893
Size: 727.4 KB

Helmsman · 01-23-2022, 05:44 AM

Quote:

Originally Posted by nicke_1

M3 E92 LCI with production date May 2010. 120854 km/75095 miles. The RB’s were replaced five years ago at 88471 km/54973 miles with 702/703 bearings and BMW bolts. I am now replacing them with BE and BE-ARP bolts. Old RB’s has only got 32383 km/20121 miles on them.

Nice post Nicke! Yeah looks to be some wear even after 3.2kkm only, maybe sign that crank/shells was on the tight end. Anyways great with new ones in place!
Also interesting with your plasti checking vs old shells, tad weird on cyl 5 but probably not more exact than so.

Assimilator1 · 01-23-2022, 06:34 AM

You mean 32k kms

Btw where do you see no5 clearance figures? They're obscured to me on that pic....
(No8's figures seem weird to me, been reversed??).

Quote:

Originally Posted by nicke_1

M3 E92 LCI with production date May 2010. 120854 km/75095 miles. The RB’s were replaced five years ago at 88471 km/54973 miles with 702/703 bearings and BMW bolts. I am now replacing them with BE and BE-ARP bolts. Old RB’s has only got 32383 km/20121 miles on them.
Attachment 2794876

Thanks for the good pics

And possibly the 1st photos of LCI bearings that have worn through to the copper that I've seen?? (no4 top).
I don't suppose you want to perform a simple little experiment on that shell? (and ideally 1 of the other top bearings).

Fezza · 01-23-2022, 07:43 PM

Quote:

Originally Posted by Assimilator1

You mean 32k kms

And possibly the 1st photos of LCI bearings that have worn through to the copper?? (no4 top).

I posted this a while back from a friend's LCI after 125k miles: https://www.m3post.com/forums/showpo...postcount=1688 maybe that was the first one you saw showing copper?

I changed mine (LCI) at 59k miles: https://www.m3post.com/forums/showpo...postcount=1123 so will do your test as I never knew LCI shells had copper but was confused why my friend's above LCI was showing copperish hues.

nicke_1 · 01-24-2022, 06:45 AM

Thanks Helmsman. Sorry for the bad pic. Here is a better one. The top shell for cylinder #7 is pretty worn down. Thankfully no scoring marks on the crank - it is silky smooth.

M3 E92 LCI with production date May 2010. 120854 km/75095 miles. The RB’s were replaced five years ago at 88471 km/54973 miles with 702/703 bearings and BMW bolts. I am now replacing them with BE and BE-ARP bolts. Old RB’s has only got 32383 km/20121 miles on them.

Name: IMG_3593_2.jpg
Views: 657
Size: 810.1 KB

Name: IMG_3593_2.jpg
Views: 657
Size: 810.1 KB

Quote:

Originally Posted by Helmsman

Nice post Nicke! Yeah looks to be some wear even after 3.2kkm only, maybe sign that crank/shells was on the tight end. Anyways great with new ones in place!
Also interesting with your plasti checking vs old shells, tad weird on cyl 5 but probably not more exact than so.

Fezza · 01-24-2022, 06:50 AM

Assimilator1 did your test on two of my worst LCI shells (59k miles) and it cleaned up to the Tin layer, 2nd shell I went further until Copper showed up

nicke_1 · 01-24-2022, 06:55 AM

Quote:

Originally Posted by Assimilator1

You mean 32k kms

Btw where do you see no5 clearance figures? They're obscured to me on that pic....
(No8's figures seem weird to me, been reversed??).

Thanks for the good pics

And possibly the 1st photos of LCI bearings that have worn through to the copper?? (no4 top).
I don't suppose you want to perform a simple little experiment on that shell? (and ideally 1 of the other top bearings).

I guess that you mean cyl #7, top bearing (once again, sorry for the bad picture, a new one has been uploaded - see my previous post). Measured the play for the old bearings for cyl # 4 and 5. For cyl #5 I got 0,051mm for the old bearing and 0,038mm for the new BE Bearing... Wired. I'm going to remove it tonight and do a new measurement. Good thing that I choose reusable ARP-bolts...
