How can I find the right one with Klemme 15 instead of Terminal 30 ?

SaNGRia wrote

I am not sure NBT EVO will show the side cameras since it only have 360 Option other than rear view!

E70 did not have front bumper cameras. F series had that option. E70 had Top View option and the cameras were located under the side mirrors. It uses only 3 side including rear! So when you wanna do the full camera retrofit, you need to use proper cameras. Rear View Cam might be different than the one i used on my retrofit for the Top View Option!

And i dont think u can activate that with NBT EVO since it supports 360 with ICAM not with TRSVC!

So not sure about your cams gonna work! But if you find a way share with us!

Hi Sangria

I am running TRSVC on K can 1. E70 TRSVC was on K can 1 too. I am thinking that If reverse camera and TRSVC working on K can 1 and then data getting transmitted to NBT ADAPTER and then to NBT EVO, then I think it should do the same for the front bumper cameras too. I agree that E70 did not come with default front side bumper cameras, but if someone wanted to get side cameras, then they could get it on a special request. so in theory I might be able to get it working. and also on some NBT EVO, the side bumpers camera could be working. I think it all depends on the software the nbt evo have. I will try to do this in coming days and let you guys know if only I succeed. or else if you find a way, then post here mate . thanks

panky wrote

Hi Sangria

I am running TRSVC on K can 1. E70 TRSVC was on K can 1 too. I am thinking that If reverse camera and TRSVC working on K can 1 and then data getting transmitted to NBT ADAPTER and then to NBT EVO, then I think it should do the same for the front bumper cameras too. I agree that E70 did not come with default front side bumper cameras, but if someone wanted to get side cameras, then they could get it on a special request. so in theory I might be able to get it working. and also on some NBT EVO, the side bumpers camera could be working. I think it all depends on the software the nbt evo have. I will try to do this in coming days and let you guys know if only I succeed. or else if you find a way, then post here mate . thanks

Yeah as long as the HU has side view settings you are good to go. But i am not sure NBT EVO since it only came with 360 view. But CAFD can be checked out for more option.

Hi,

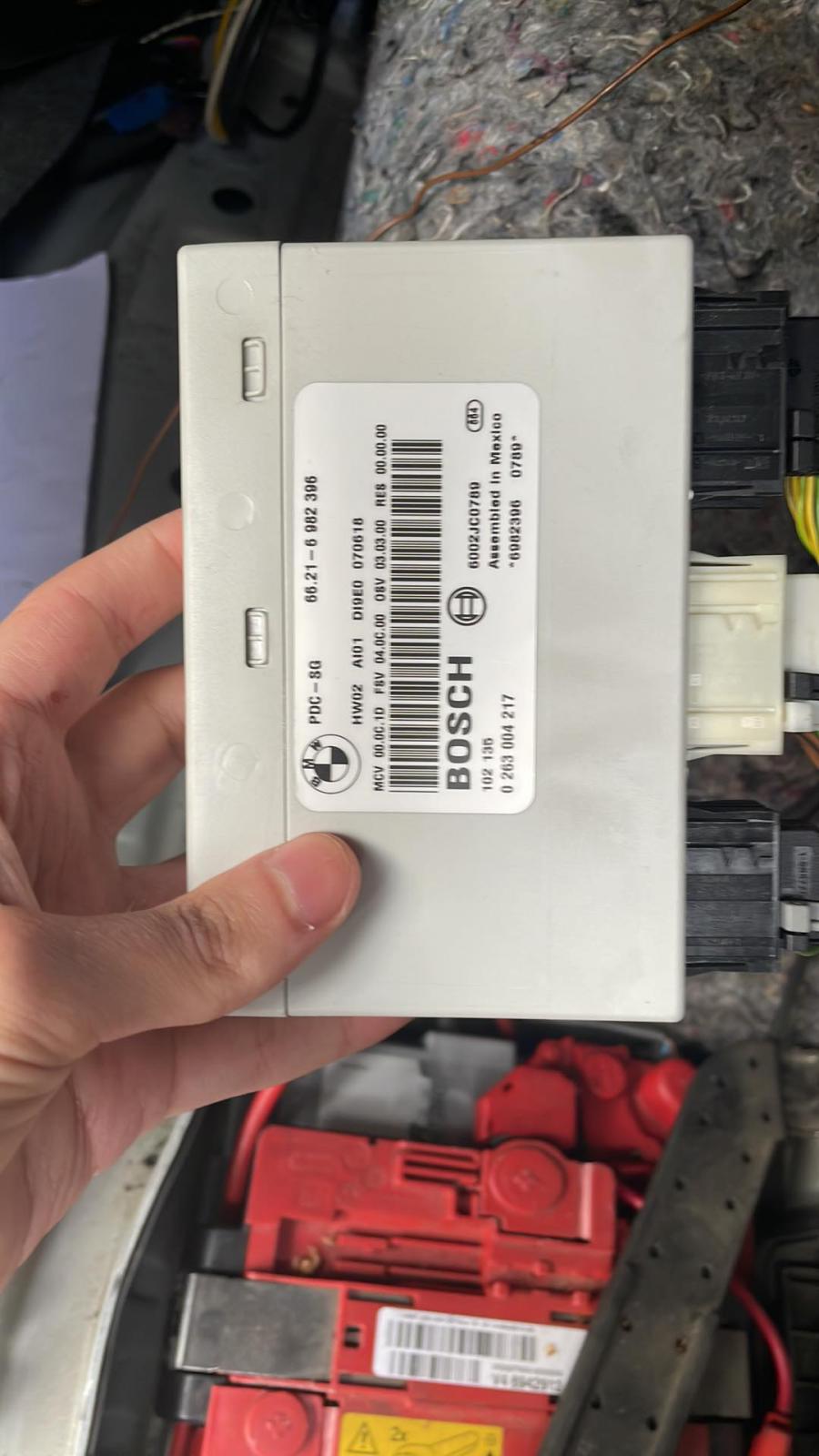

I'm having from the factory on my vehicle's front and rear PDC. I bought PDC from E84 which came out from the 2011-2012 module. So is it better to swap them and code them or to choose by swiping with the file that you share with us?

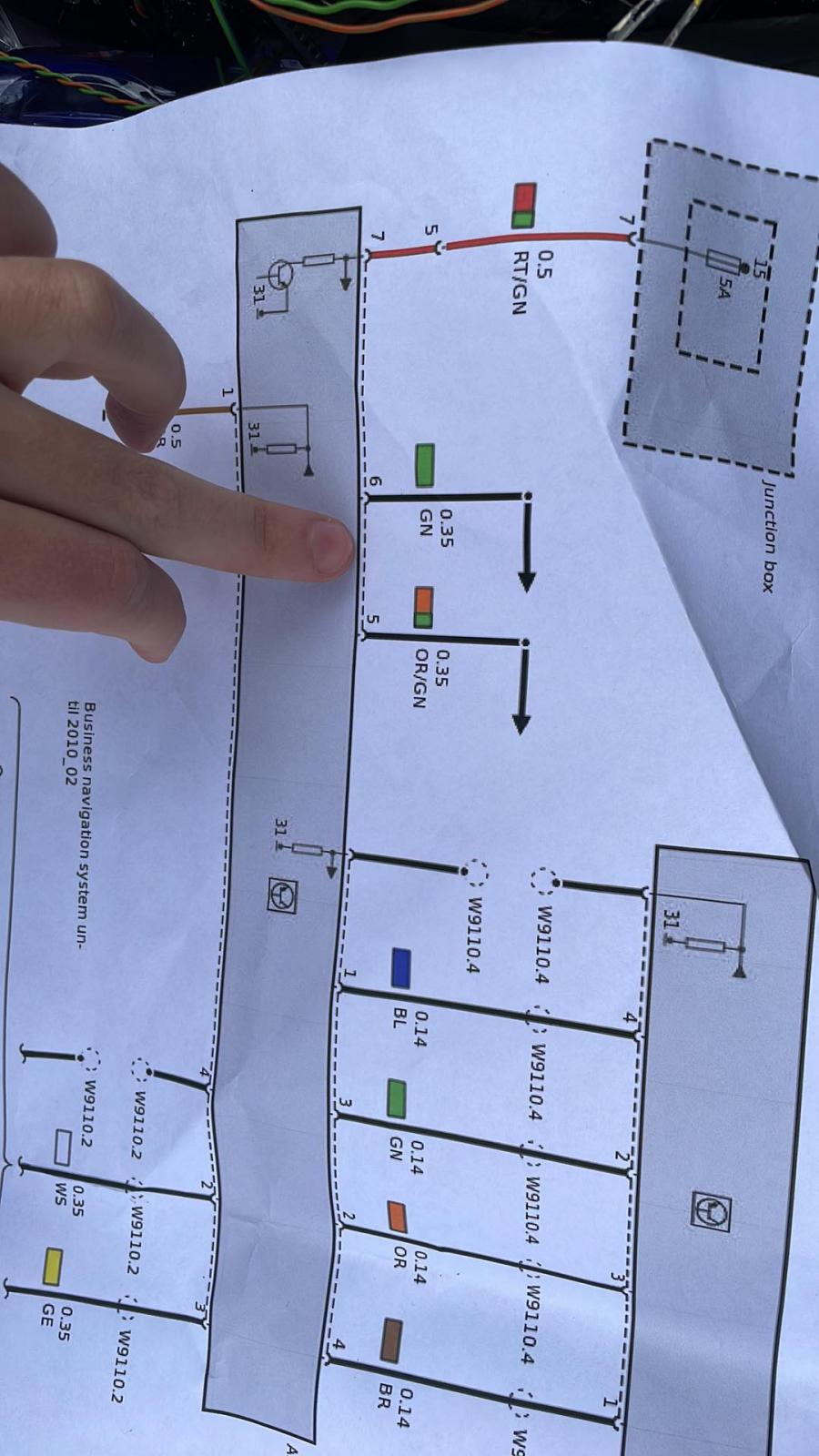

I have put in the navigation CIC professional Pin 18+ Pin 28- Pin 27 Shield in this order after that I run one more cable to the glovebox which is in pin 10 with a 5 amp fuse but I ran 2 more cables in the back and I don't understand do you need to rewire your PDC module and where you need to put Pin 7 and Negative Pin 1, because I have a second brown ground cable which I have put in the ground section and is located behind the trim itself. And how to know which pin in the PDC module is pin 1 and from which 3 cables that I have on my car I need to put them? In the picture with the diagram I indicate which 2 cables I am talking about.

scroller wrote

Hi,

I'm having from the factory on my vehicle's front and rear PDC. I bought PDC from E84 which came out from the 2011-2012 module. So is it better to swap them and code them or to choose by swiping with the file that you share with us?
I have put in the navigation CIC professional Pin 18+ Pin 28- Pin 27 Shield in this order after that I run one more cable to the glovebox which is in pin 10 with a 5 amp fuse but I ran 2 more cables in the back and I don't understand do you need to rewire your PDC module and where you need to put Pin 7 and Negative Pin 1, because I have a second brown ground cable which I have put in the ground section and is located behind the trim itself. And how to know which pin in the PDC module is pin 1 and from which 3 cables that I have on my car I need to put them? In the picture with the diagram I indicate which 2 cables I am talking about.

i am confused. If you already have PDC , why are you trying to rewire the PDC module? That does not have any changes. All you do is wire the TRSVC and code the modules accordingly.

Hello,

After the coding situation is that the car is not seeing the module. Maybe it's because I have 2 wires which are green and green/orange, that are not connected anywhere, because I need to get a can from 6 and 5 which needs to be connected to the PDC module.

scroller wrote

Hello,

After the coding situation is that the car is not seeing the module. Maybe it's because I have 2 wires which are green and green/orange, that are not connected anywhere, because I need to get a can from 6 and 5 which needs to be connected to the PDC module.

Can bus what makes modules to communicate each other

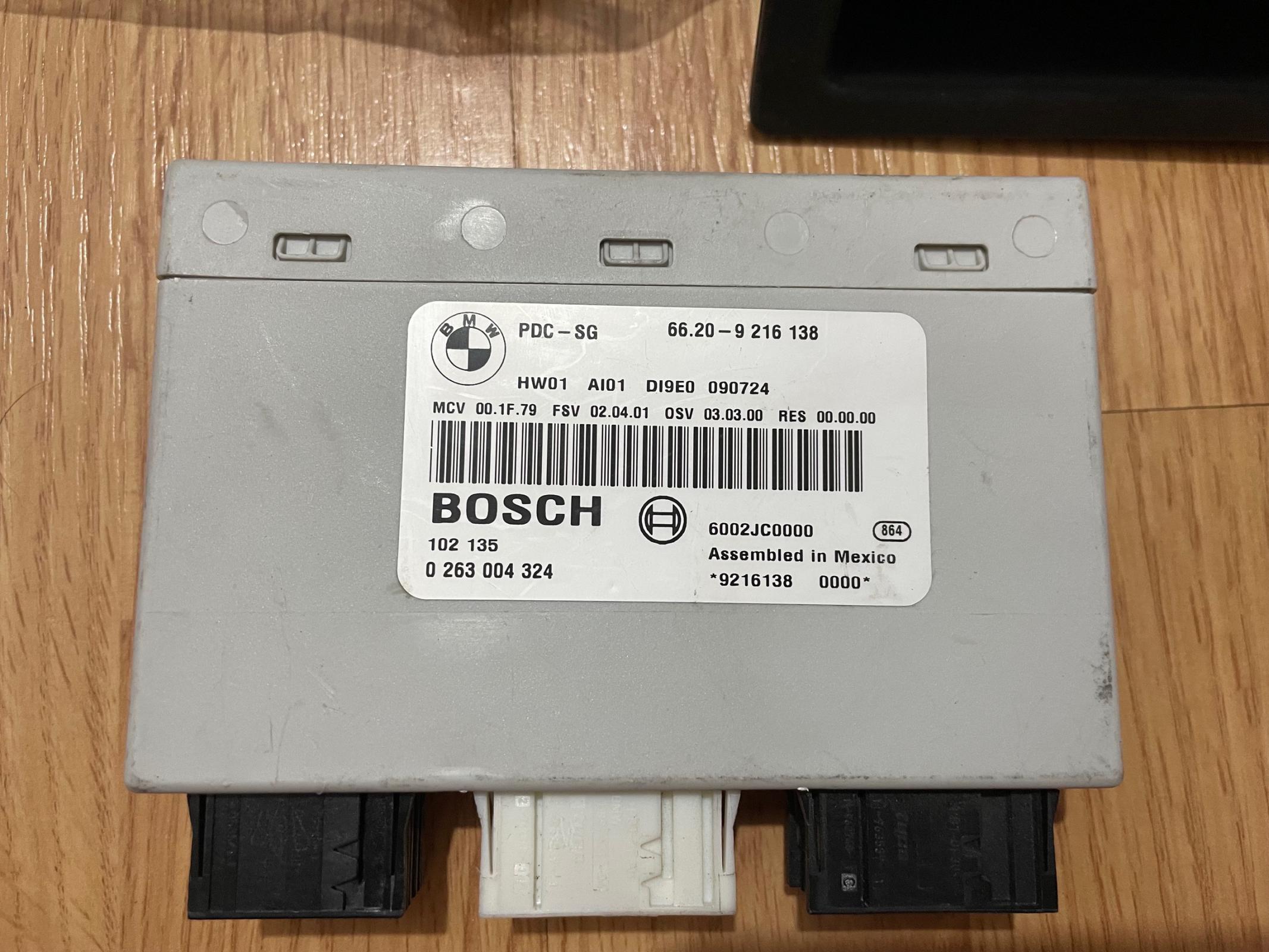

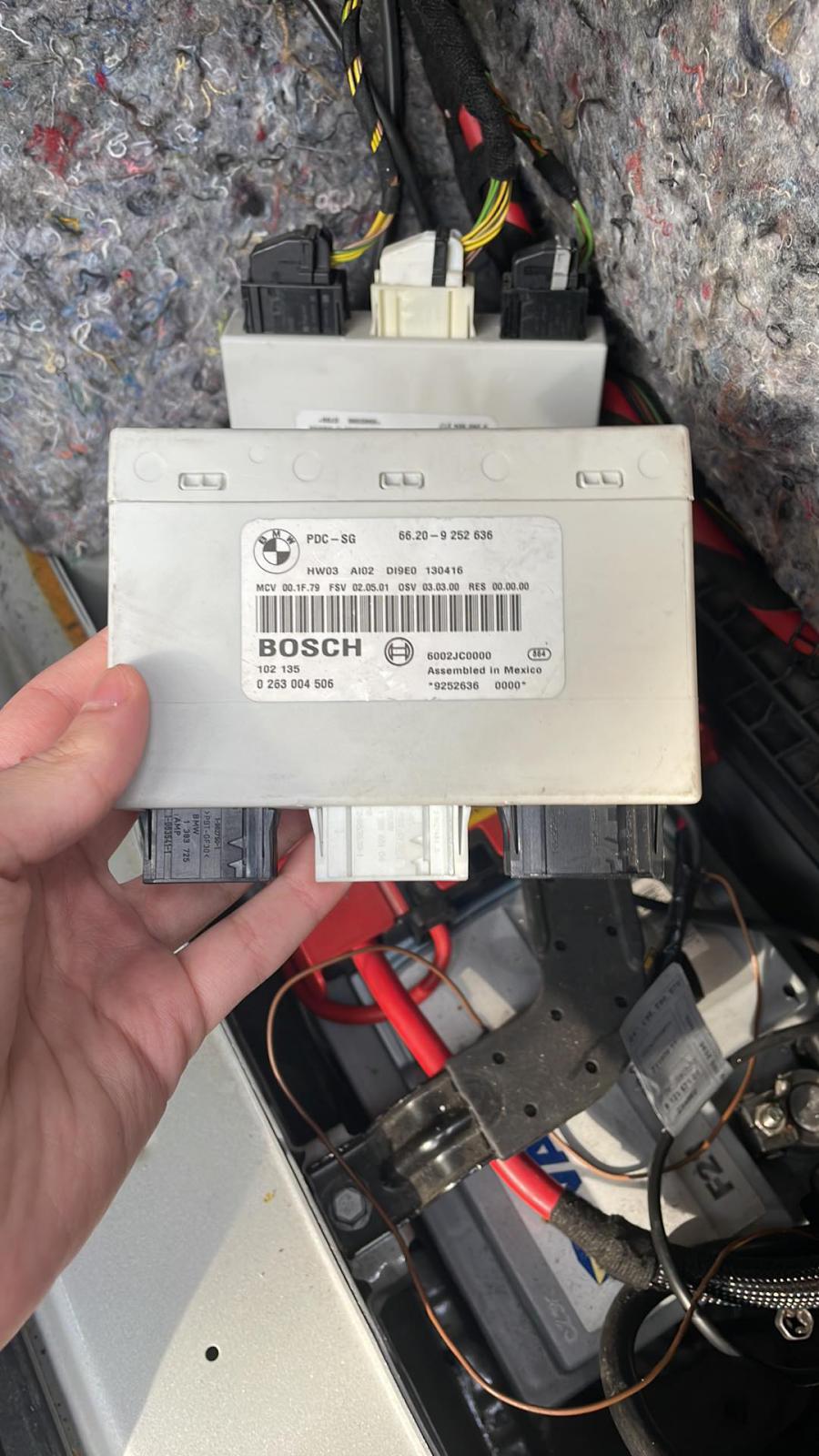

Quick question regarding the PDC module: Does it absolutely HAVE to be 92636, or will 92638 work as well?

9252638 was used in some X1 models, but 9252636 looks to have only been used in the X1, so maybe it has to be 92636. Just wanted to ask for certainty since I already have 92636 installed.

9mmkungfu wrote

Quick question regarding the PDC module: Does it absolutely HAVE to be 92636, or will 92638 work as well?

9252638 was used in some X1 models, but 9252636 looks to have only been used in the X1, so maybe it has to be 92636. Just wanted to ask for certainty since I already have 92636 installed.

i believe this question already answered here. X1 having different modules and part numbers are totally normal since some of them came without reverese camera. So the one listed is a must!

Has anyone deleted TPMS and used the power, ground and k can for the camera module?

or better yet delete the MULF during a combos retrofit and use the power + ground from that.

Fingers crossed I will have my own M3 to fit this to come Tuesday.

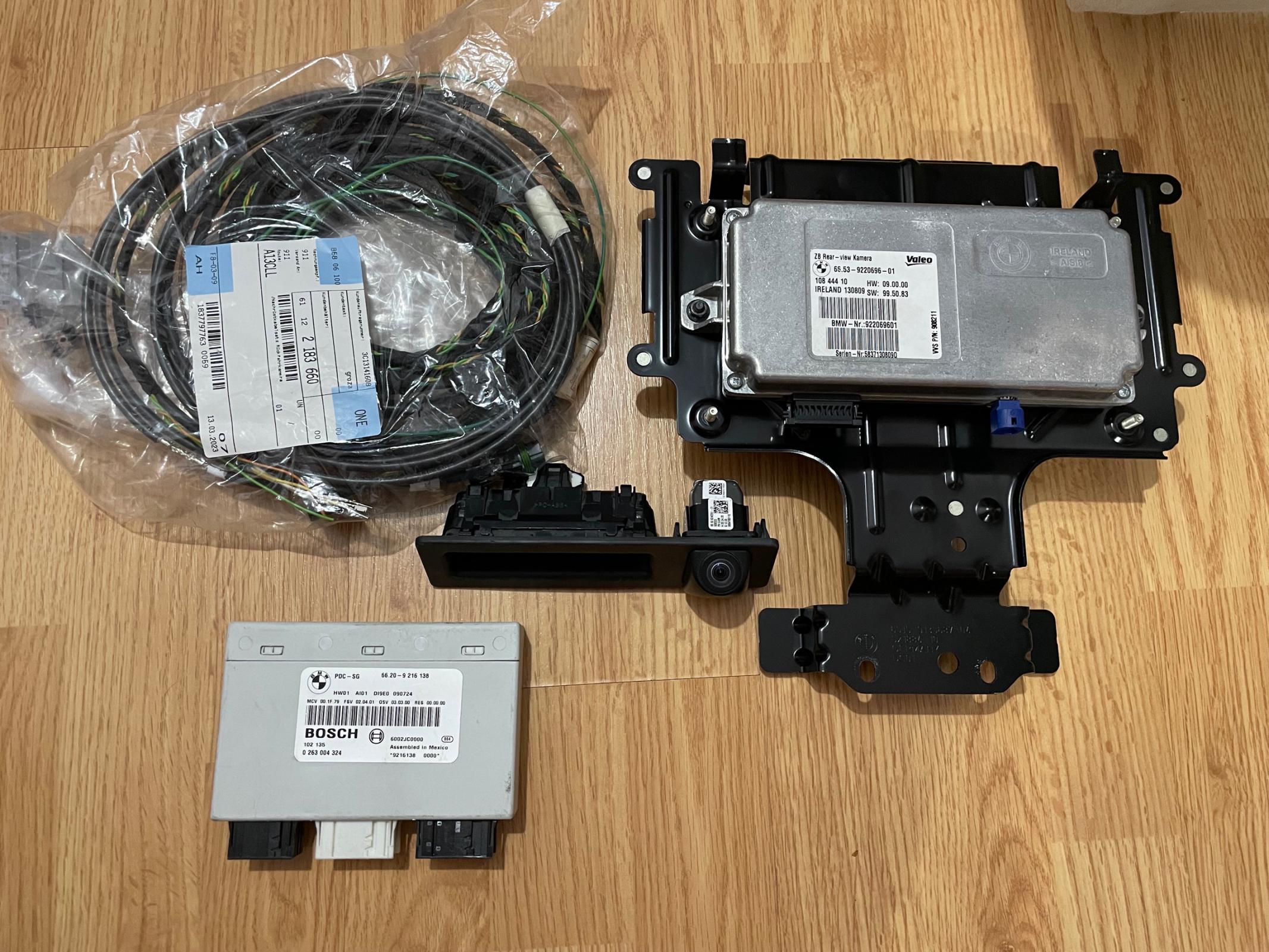

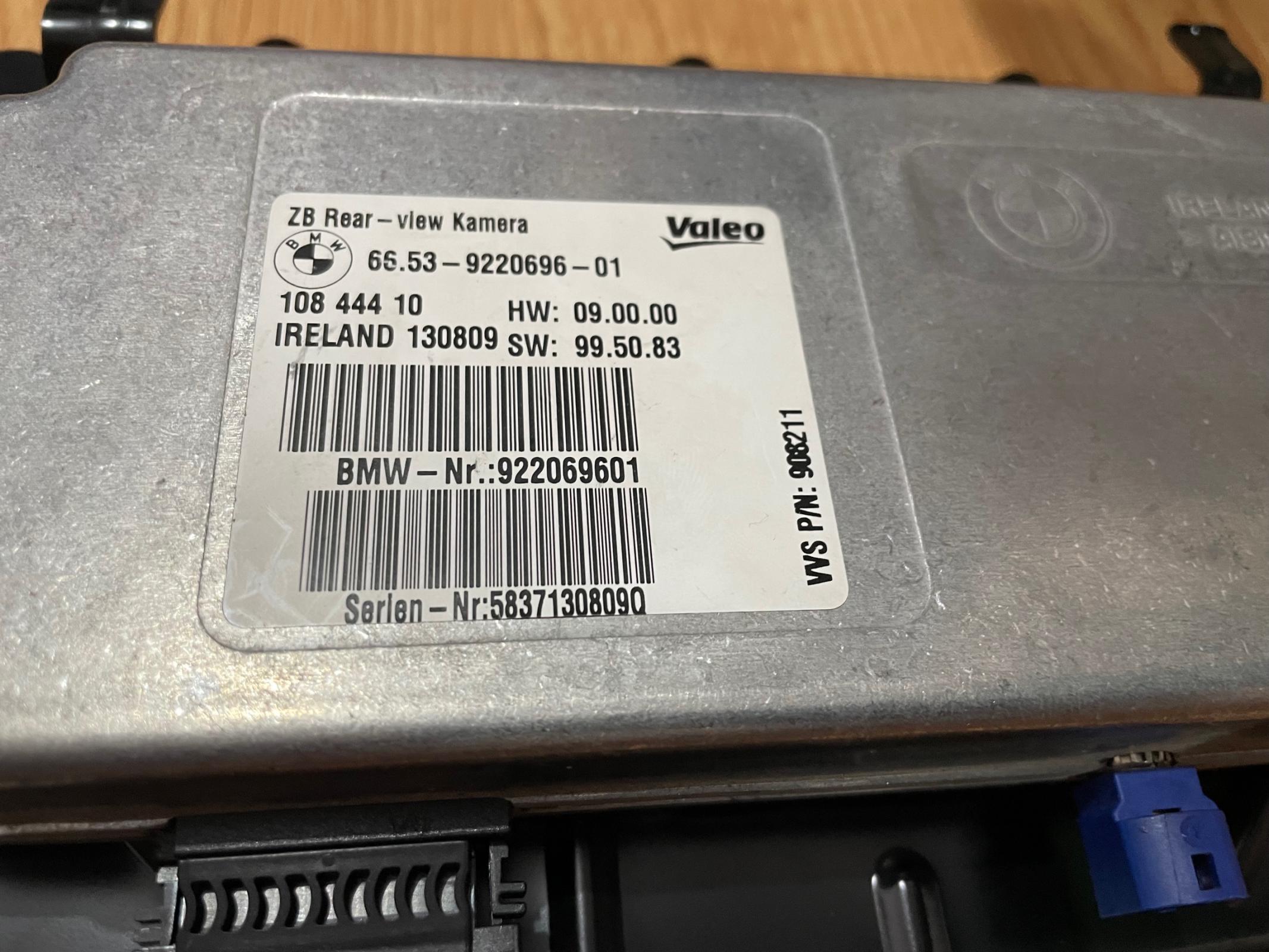

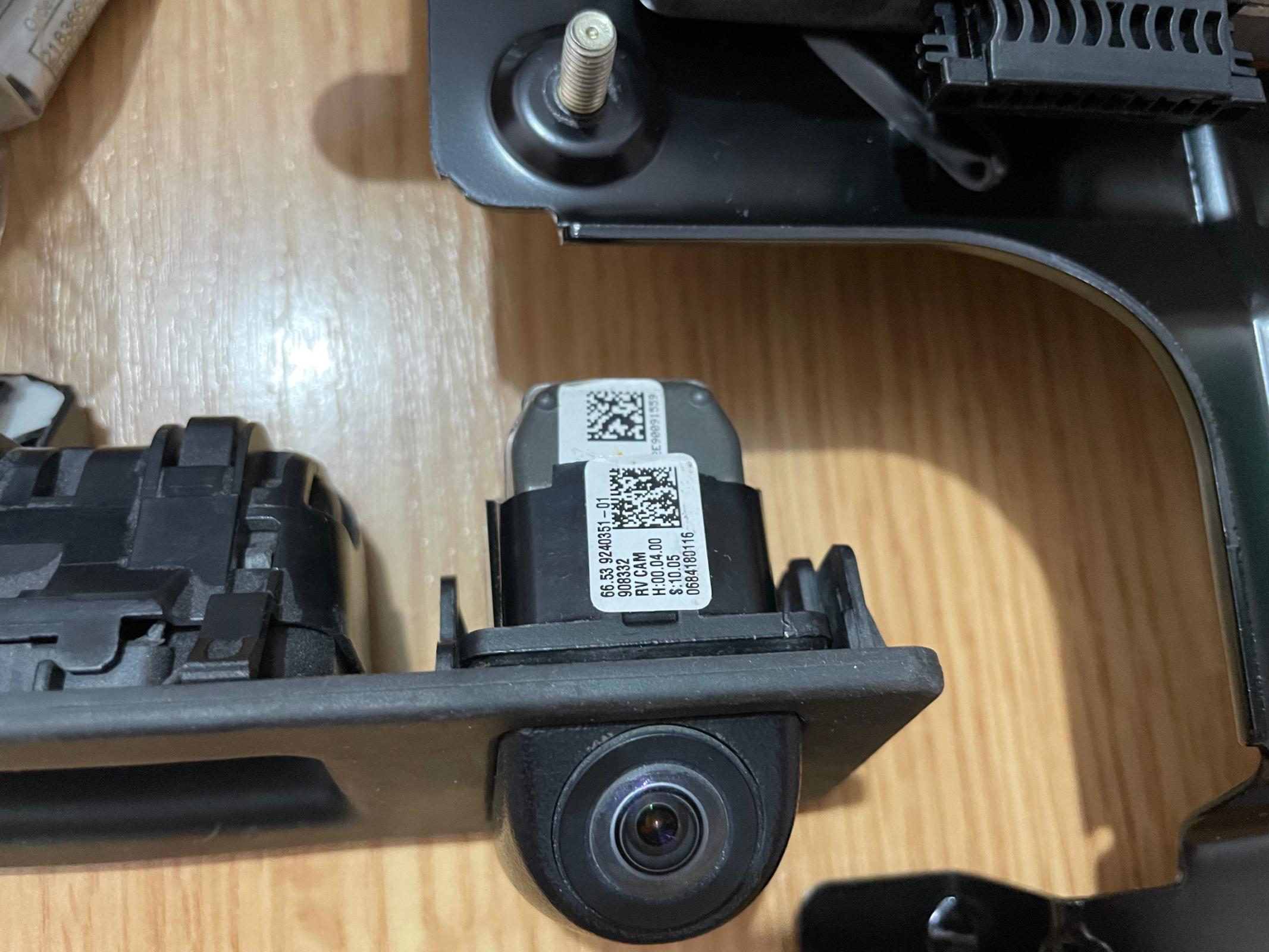

I have a complete retrofit kit for whoever is interested .

Price is 350€ shipped to EU

Do you think it could work with M2 2016 (F87) with NBT Evo? Also, what about a front camera?

no, this is intended for E9x E87 series.....

mare92 wrote

Do you think it could work with M2 2016 (F87) with NBT Evo? Also, what about a front camera?

What do you want to accomplish? Rearview camera? If so yes it is possible with different hardware.

dumitru.o wrote

no, this is intended for E9x E87 series.....

Bro that TRSVC no good for E series! Thats for F series.

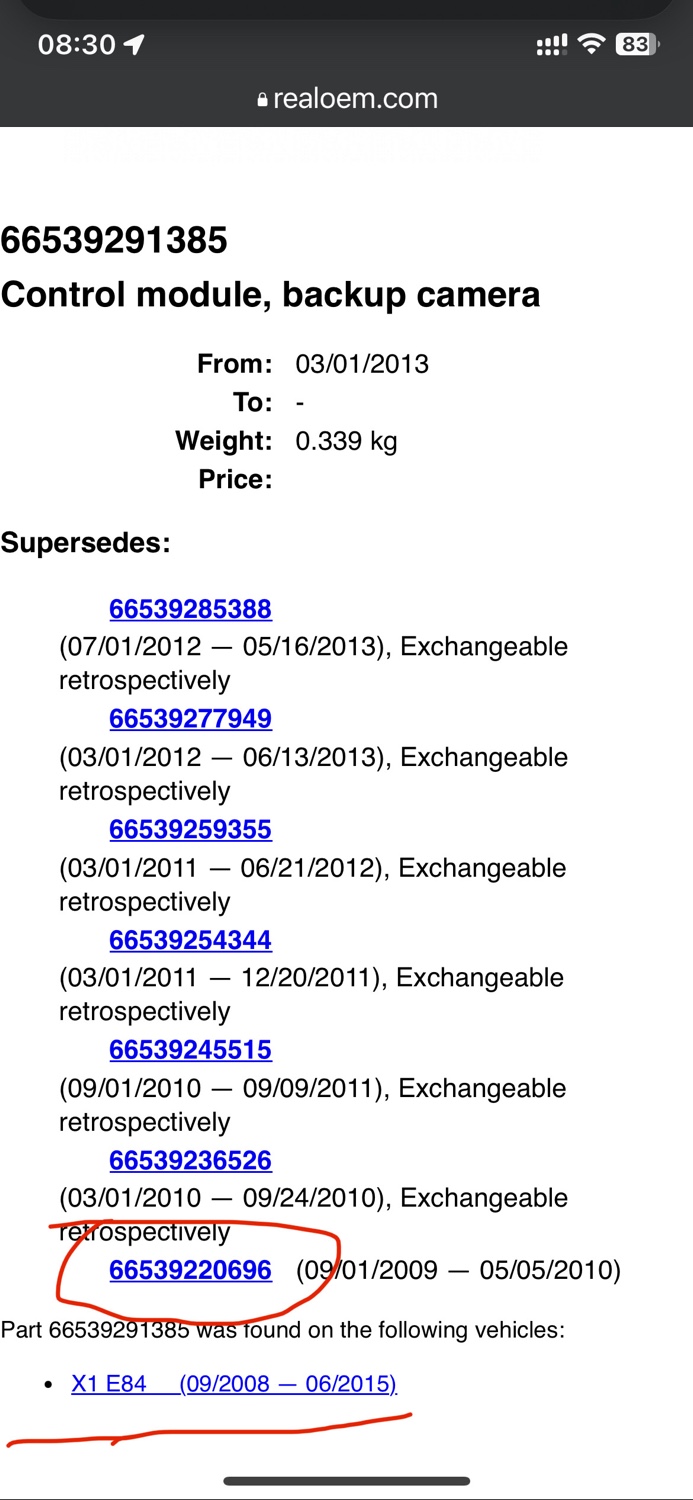

The module is from e84, i even program it for my e92 using winkfp , custom coded with nettodat . I don t think i could have done that if it was for F series

Please double check the part #

Well i have never seen any of the modules that has a full set of number on the version that works on E series. Usually it includes a letter in it. If that was a working TRSVC on E series then it must be exceptional.

dumitru.o wrote

I have a complete retrofit kit for whoever is interested .

Price is 350€ shipped to EU

Hi.Still for sale?

Yes

Still have it available

Hello Where at the nbt quad lock we put the cables from the video Modul ?
I have regular nbt not evo
This cable work ? https://www.schmiedmann.com/en/product/e220681-new?product=61-12-2-162-971

that cable they are asking 300 eur for?


here is your pinout

dumitru.o wrote

that cable they are asking 300 eur for?


here is your pinout

No I found cheaper on eBay
So I plug in number 21 -23-24 yes ?
