EAS Dyno, ESS VT3 SC'D M3 - 686WHP/460WTQ STD, 686/460 Uncorrected, 667/448 SAE

DLSJ5 · 02-07-2013, 01:11 AM

Featured on BIMMERPOST.com

I had a chance to dyno my ESS VT3 Supercharged Low Compression Built Motor at European Auto Source (EAS). It was the first time I'd been to EAS, and the shop was setup nicely, friendly staff and Tom was very gracious as well. Steve from EAS operated the dyno, very knowledgable and awesome guy as well. THANK YOU - Tom, Steve and the rest of the crew at EAS.

We dynoed the car back in December on 91 octane and I came back today to dyno with a 91/100 mix ~94octane, Meth, and a few gallons of E85 (~19% mix) as well.

I'm very pleased with the results.

Here's a vid of the AFR/Boost/FP - gauge reads a solid AFR throughout and ~12.x psi.

Dyno vid -

Pics -

[IMG]

[/IMG]

Here's the results, a big thanks to Robert (PG) for putting all the info/graphs together for me.

Car and Modifications:

2008 BMW M3
ESS VT3-750 Supercharger kit @ 13.30 PSI Boost +Meth
Snow Performance Methanol Injection
Both CAT Delete
ESS X-Pipe
ESS Exhaust
94 Octane, +19% E85 (3 Gallons)
DCT

Conditions:

Temparature:: 72.46 degrees F
Atmospheric pressure: 30.01 inHg
Humidity: 26%
Density Altitude: 1163 Ft.
SAE Correction: 0.972
STD Correction: 0.999
Uncorrected: 1.000

Results:

SAE Corrected: 667whp @ 8160 RPM, 448wtq @ 7260 RPM
STD Corrected: 686whp, 460wtq
Uncorrected: 686whp, 460wtq

Dyno Database:

Dyno files are available from the links below.
SAE
Corrected
STD
Corrected
Uncorrected

Individual Dyno Results:
The legend below has the following meaning:

Dyno Run: Dyno run file
Timestamp
Temp(F) = Temperature (Farenheit)
RelH = Relative Humidity
Pressure(Hg) = Barometric Pressure
DA(ft) = Density Altitude
WHP(unc) = Uncorrected wheel horsepower
WTQ(unc) = Uncorrected wheel torque
WHP(SAEd) = SAE Corrected Horsepower using Dynojet weather station.
WTQ(SAEd) = SAE Corrected Torque using Dynojet weather station.

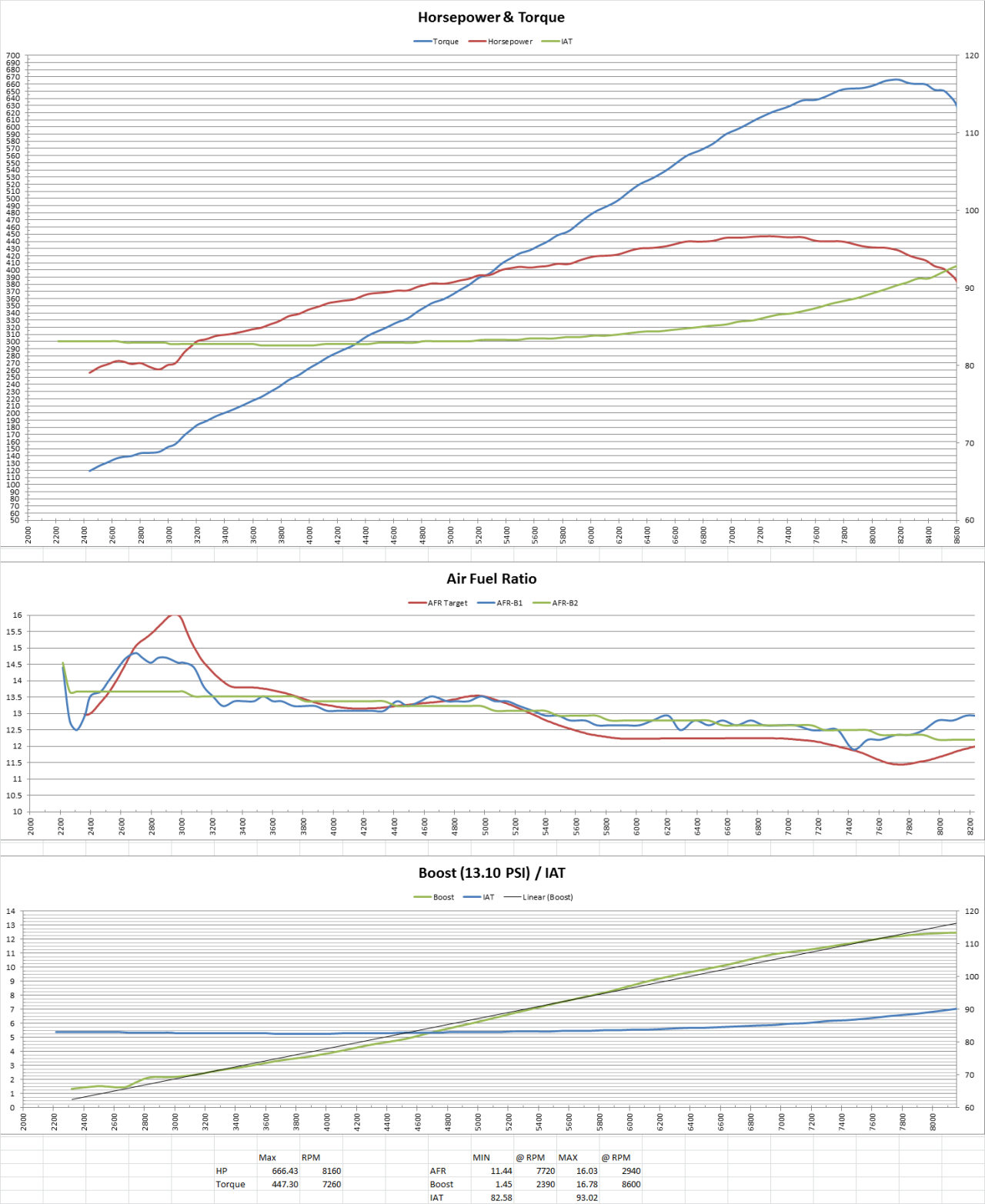

Graphs:
SAE Correction:

STD Correction:

Uncorrected:

THE-FN-MAN · 02-07-2013, 01:16 AM

WOW!

DLSJ5 · 02-07-2013, 01:20 AM

Quote:

Originally Posted by THE-FN-MAN

WOW!

Thanks Mark!

Longboarder · 02-07-2013, 01:22 AM

Damn Drew. Can't wait to see you run at the next Shift-Sector event in April!

DLSJ5 · 02-07-2013, 01:22 AM

Quote:

Originally Posted by Longboarder

Damn Drew. Can't wait to see you run at the next Shift-Sector event in April!

You too Brother!

tom @ eas · 02-07-2013, 01:24 AM

Loved seeing the beast prove itself on the dyno.

This M3 is scary fast.

Roman@ESS · 02-07-2013, 01:26 AM

Not bad

leigh · 02-07-2013, 04:28 AM

Nice!!!

img · 02-07-2013, 06:23 AM

Monster Brotha !

CanAutM3 · 02-07-2013, 06:35 AM

Those numbers rock

m3less · 02-07-2013, 06:58 AM

That's Crazy!! Congrats!! B safe.

THE TECH · 02-07-2013, 09:49 AM

Nice numbers!

GOLFFRR · 02-07-2013, 09:50 AM

beast.

Team Plutonium · 02-07-2013, 09:57 AM

Awesome Drew!

kawasaki00 · 02-07-2013, 10:06 AM

Awesome, cant wait for the videos of the next event.

Lalit@AUTOcouture · 02-07-2013, 10:07 AM

Very nice

chris s · 02-07-2013, 10:13 AM

insane numbers drew!

DLSJ5 · 02-07-2013, 12:19 PM

Quote:

Originally Posted by tom @ eas

Loved seeing the beast prove itself on the dyno.

This M3 is scary fast.

Tom, Thank you! Great seeing you and the guys yesterday, and also Nik and Jeff from VF.

I can't wait to see how it does at the the next Shift-S3ctor Airstrip Attack, hope you can be part of that as well.

DLSJ5 · 02-07-2013, 12:19 PM

Quote:

Originally Posted by Roman@ESS

Not bad

Haha, thanks for everything Brother!

M3DCTBT · 02-07-2013, 12:20 PM

Knew you'd love the E85 mix, my 650 is a beast with it!

kchu221 · 02-07-2013, 12:23 PM

holy fuck...

BuckRodgers · 02-07-2013, 12:24 PM

Great numbers!

Has the date been set for the next event?

02-07-2013, 01:11 AM	#1
DLSJ5 Colonel Drives: 08 E92 DCT M3 Join Date: Dec 2006 Location: CA Posts: 2,793 iTrader: (0)	EAS Dyno, ESS VT3 SC'D M3 - 686WHP/460WTQ STD, 686/460 Uncorrected, 667/448 SAE Featured on BIMMERPOST.com I had a chance to dyno my ESS VT3 Supercharged Low Compression Built Motor at European Auto Source (EAS). It was the first time I'd been to EAS, and the shop was setup nicely, friendly staff and Tom was very gracious as well. Steve from EAS operated the dyno, very knowledgable and awesome guy as well. THANK YOU - Tom, Steve and the rest of the crew at EAS. We dynoed the car back in December on 91 octane and I came back today to dyno with a 91/100 mix ~94octane, Meth, and a few gallons of E85 (~19% mix) as well. I'm very pleased with the results. Here's a vid of the AFR/Boost/FP - gauge reads a solid AFR throughout and ~12.x psi. Dyno vid - Pics - [IMG][/IMG] Here's the results, a big thanks to Robert (PG) for putting all the info/graphs together for me. Car and Modifications: 2008 BMW M3 ESS VT3-750 Supercharger kit @ 13.30 PSI Boost +Meth Snow Performance Methanol Injection Both CAT Delete ESS X-Pipe ESS Exhaust 94 Octane, +19% E85 (3 Gallons) DCT Conditions: Temparature:: 72.46 degrees F Atmospheric pressure: 30.01 inHg Humidity: 26% Density Altitude: 1163 Ft. SAE Correction: 0.972 STD Correction: 0.999 Uncorrected: 1.000 Results: SAE Corrected: 667whp @ 8160 RPM, 448wtq @ 7260 RPM STD Corrected: 686whp, 460wtq Uncorrected: 686whp, 460wtq Dyno Database: Dyno files are available from the links below. SAE Corrected STD Corrected Uncorrected Individual Dyno Results: The legend below has the following meaning: Dyno Run: Dyno run file Timestamp Temp(F) = Temperature (Farenheit) RelH = Relative Humidity Pressure(Hg) = Barometric Pressure DA(ft) = Density Altitude WHP(unc) = Uncorrected wheel horsepower WTQ(unc) = Uncorrected wheel torque WHP(SAEd) = SAE Corrected Horsepower using Dynojet weather station. WTQ(SAEd) = SAE Corrected Torque using Dynojet weather station. Graphs: SAE Correction: STD Correction: Uncorrected: __________________ 08 E92 M3 DCT - Bolt Ons - 60-130MPH 10.71s - 11.88 @ 118MPH - 377WHP ESS VT2-625 SC 60-130MPH 6.80s - 11.30 @ 129.3 MPH 586WHP / 379WTQ @ 7.2psi - 94 octane / Water meth ESS VT3-725 60-130MPH 6.64s - 620Whp/420Wtq@ 11psi ESS VT3-750 - 685Whp/466Wtq@13.5 psi SAE - 703WHP /478WTQ@13.5 psi STD Last edited by DLSJ5; 02-09-2013 at 08:02 PM.
	Tweet

02-07-2013, 01:22 AM	#4
Longboarder Lieutenant Colonel Drives: 2013 e92 M3 Join Date: Dec 2006 Location: Kailua/Monarch Beach Posts: 1,984 iTrader: (1) Garage List 2013 e92 M3 [5.00] 2010 335i [2.17] 1998 M Roadster [0.00]	Damn Drew. Can't wait to see you run at the next Shift-Sector event in April! __________________ Track/Airstrip: 2013 e92 M3 MW FR DCT ZCP / ESS VT2 625, MRF mid/Akra slip, StopTech BBK (573 RWHP STD @ 8,600 RPM) Beater: 2013 WRX STi Sedan / Cobb Stg 2 / WRX wing lol

02-07-2013, 01:24 AM	#6
tom @ eas BimmerPost Supporting Vendor Drives: BMW Join Date: Nov 2005 Location: Anaheim, CA Posts: 8,858 iTrader: (12) Garage List 2008 ESS VT2-525 Z4MC [0.00] 2011 ESS VT2-625 M3 [0.00]	Loved seeing the beast prove itself on the dyno. This M3 is scary fast. __________________ Tom G. \| european auto source (eas) email: tom@europeanautosource.com web: www.europeanautosource.com tel 866.669.0705 \| ca: 714.369.8524 x22 \| fax: 714.908.1796 Blog \| Facebook \| YouTube \| Flickr \| Twitter

02-07-2013, 01:26 AM	#7
Roman@ESS BimmerPost Supporting Vendor Drives: ESS Supercharged E92 M3 Join Date: May 2007 Location: AZ Posts: 2,152 iTrader: (5)	Not bad __________________ Email: Roman@esstuning.com Phone: (480) 389-4377 Facebook: ESS Tuning

02-07-2013, 06:23 AM	#9
img VT3 Drives: E36 M3 Track car,Ess E90 M3 DD Join Date: Feb 2008 Location: The Couch Posts: 5,875 iTrader: (5)	Monster Brotha ! __________________ NO FEAR.NO LIMITS.NO EQUAL Ess VT3 LC built motor,Volk TE37SL,Challenge modefied Xpipe,Akra axle back CF tips. LOW BOOST 60-130 6.7 sec

02-07-2013, 01:16 AM	#2
THE-FN-MAN Lieutenant Drives: E92 M3 x2 Join Date: Feb 2012 Location: the wood Posts: 499 iTrader: (0)	WOW!

02-07-2013, 04:28 AM	#8
leigh Captain Drives: 2011 e92 zcp m3 Join Date: Aug 2010 Location: melbourne Posts: 611 iTrader: (0)	Nice!!!

02-07-2013, 06:35 AM	#10
CanAutM3 Major Drives: 2008 E92 M3 SS2 DCT Join Date: Jan 2012 Location: Montreal Posts: 1,277 iTrader: (0) Garage List 2006 Audi S4 [0.00] 2008 BMW M3 [0.00]	Those numbers rock

02-07-2013, 06:58 AM	#11
m3less Private Drives: 11 E90 Estoril blue Join Date: Dec 2012 Location: Cali Posts: 77 iTrader: (2)	That's Crazy!! Congrats!! B safe.

02-07-2013, 09:49 AM	#12
THE TECH BimmerPost Supporting Vendor Drives: BPMsport 2012 E92 M3 Join Date: Jun 2011 Location: Kansas Posts: 11,936 iTrader: (39)	Nice numbers! __________________ Check us out on Facebook at BPMsportLabs

02-07-2013, 09:50 AM	#13
GOLFFRR BimmerPost Supporting Vendor Drives: Golf Cart Join Date: Mar 2009 Location: Solvang, CA/Camarillo, CA Posts: 10,993 iTrader: (4)	beast. __________________ BEFORE YOU BUY YOUR NEXT BMW, PM ME FIRST I CAN HOOK YOU UP! We are Performance Center\|Euro Delivery\|BMW Individual Specialist Need a quote?..Ryan /Checa Email link \| T.805.482.8878 ask for Francesca www.stevethomasbmw.com \| OUR PARTS STORE \| Facebook-STBMW \| Twitter-STBMW

02-07-2013, 09:57 AM	#14
Team Plutonium Major General Drives: 911 Join Date: Dec 2007 Location: Upstate Posts: 8,526 iTrader: (1)	Awesome Drew! __________________ Gone... ESS VT2-625 \| ESS Tune \| M24 Oil Cooler \| Brembo 380mm BBK \| Dinan 4.10 Diff \| KW Variant 3 Coilovers \| Dinan Camber Plates \| Dinan Strut Tower Braces \| Dinan X-Pipe \| Akrapovic Exhaust \| Vorsteiner GTS3 Bumper \| Varis System One Diffuser \| OEM Performance Spoiler \| Stack Gauges \| GTS Door Sills \| Volk TE37 \| Falken Azenis RT615K 275/315 \| Pulled Fenders \| Turner Stud Kit \| OMP ARS Racing Seats New: 991C2S

02-07-2013, 10:06 AM	#15
kawasaki00 Second Lieutenant Drives: 2008 E92 Join Date: May 2012 Location: Mooresville NC Posts: 213 iTrader: (4)	Awesome, cant wait for the videos of the next event. __________________ Electronics Junkie, Engine Builder.

02-07-2013, 10:07 AM	#16
Lalit@AUTOcouture BimmerPost Supporting Vendor Drives: Bicycle Join Date: Feb 2010 Location: 201 Posts: 352 iTrader: (1)	Very nice __________________ AUTOcouture Motoring \| Facebook \| YouTube \| Lalit@AUTOcouturemotoring.com \| 201.666.3500

02-07-2013, 10:13 AM	#17
chris s Brigadier General Drives: 2012 e92 M3 Join Date: Oct 2008 Location: New York Posts: 4,566 iTrader: (8)	insane numbers drew! __________________ 2012 MR e92 M3 DCT, fully loaded... ESS NA V2 Tune, Akra/Challenge Sport, KW Sleeve, OEM GTS rims, Volk TE37 SLs 2008 e92 M3 Coupe 6MT \| AW/BLK Extended...SOLD!

02-07-2013, 12:20 PM	#20
M3DCTBT First Lieutenant Drives: E92 M3 Join Date: May 2011 Location: New England Posts: 320 iTrader: (2)	Knew you'd love the E85 mix, my 650 is a beast with it!

02-07-2013, 12:23 PM	#21
kchu221 JDM whore Drives: 2012 E92 6MT Space Grey Join Date: Jan 2012 Location: los angeles Posts: 2,276 iTrader: (5)	holy fuck... __________________ \|AUTOTALENT\|JRZ RS DAMPER\|GC CAMBER PLATE\|SWIFT SPRINGS\|OG WHITE TE37\|MICHELLIN PSS\|TURNER STUDS\|PROJECT KICS R40\|RE SSK\|VARIS CF KNOB\|VARIS VRS FRONT LIP WITH EXTENSION\|ARQRAY RACE EXHAUST\|BAVX LS3\|VOLTEX TYPE 1 GT WING\|MASTERMIND STREET X-PIPE\|

02-07-2013, 12:24 PM	#22
BuckRodgers Private First Class Drives: BMW Join Date: Dec 2012 Location: USA Posts: 109 iTrader: (0)	Great numbers! Has the date been set for the next event?
